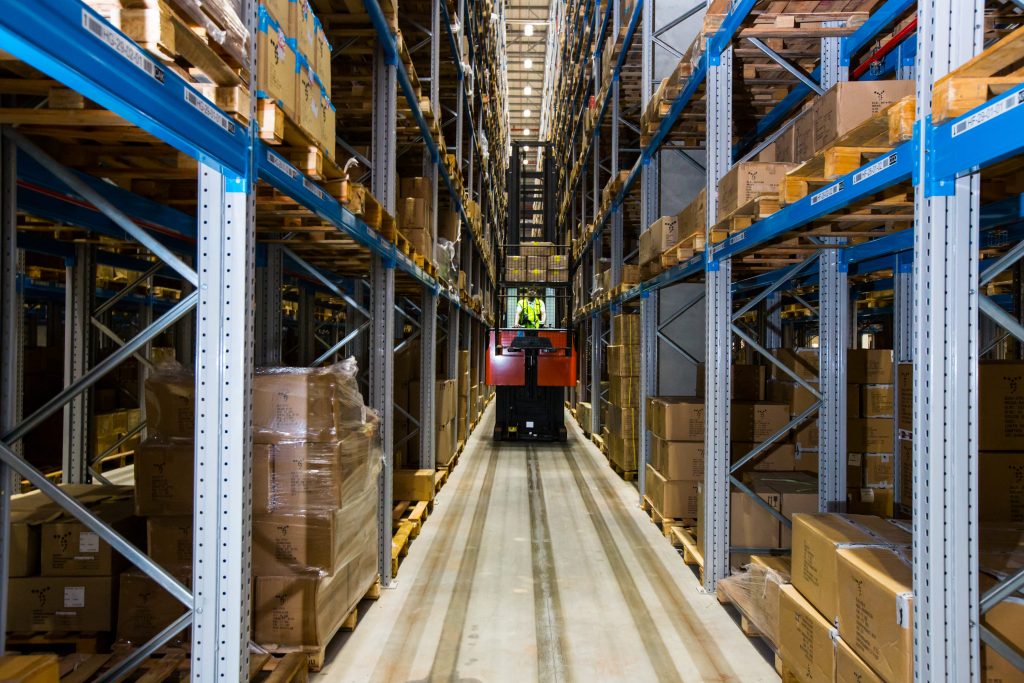

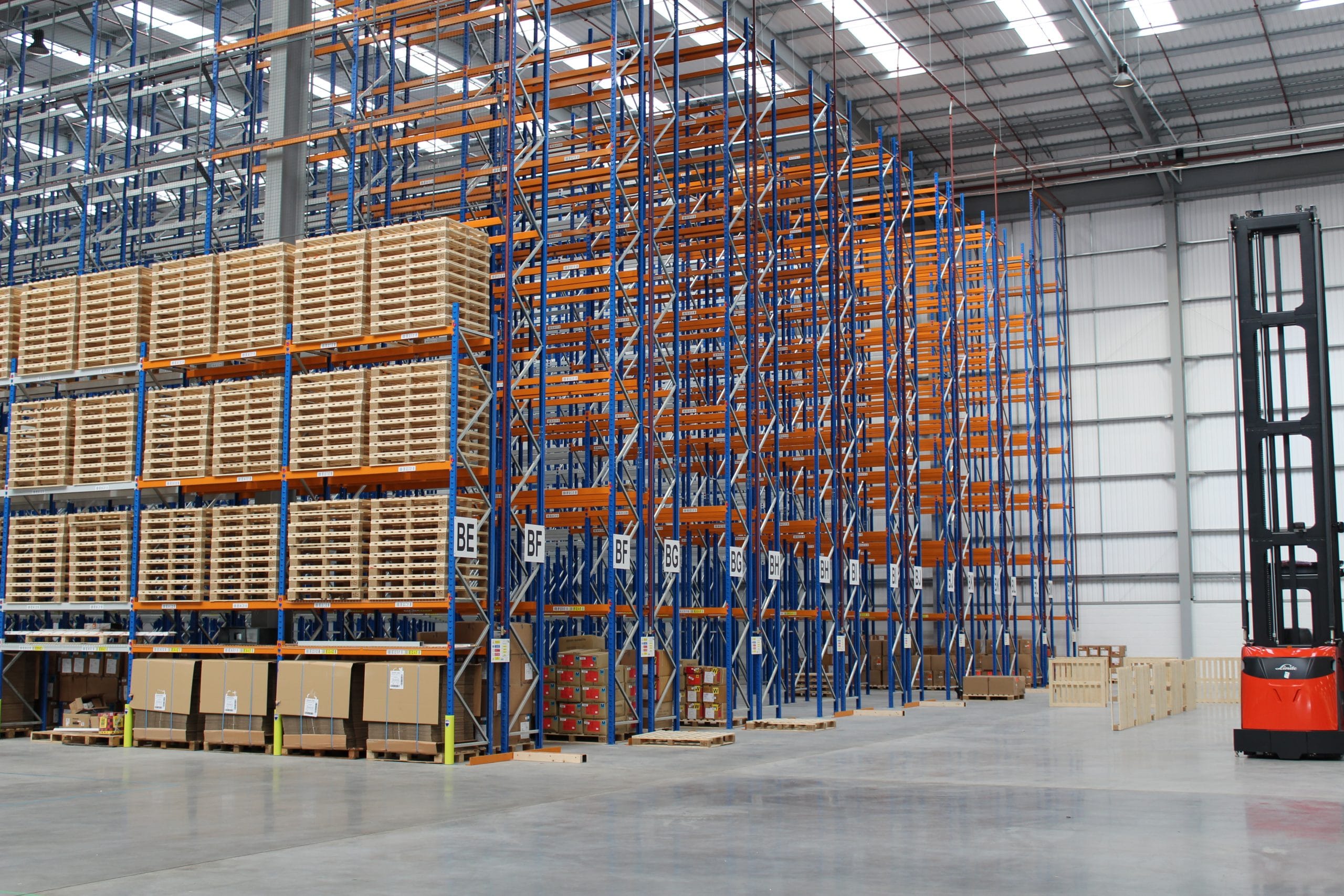

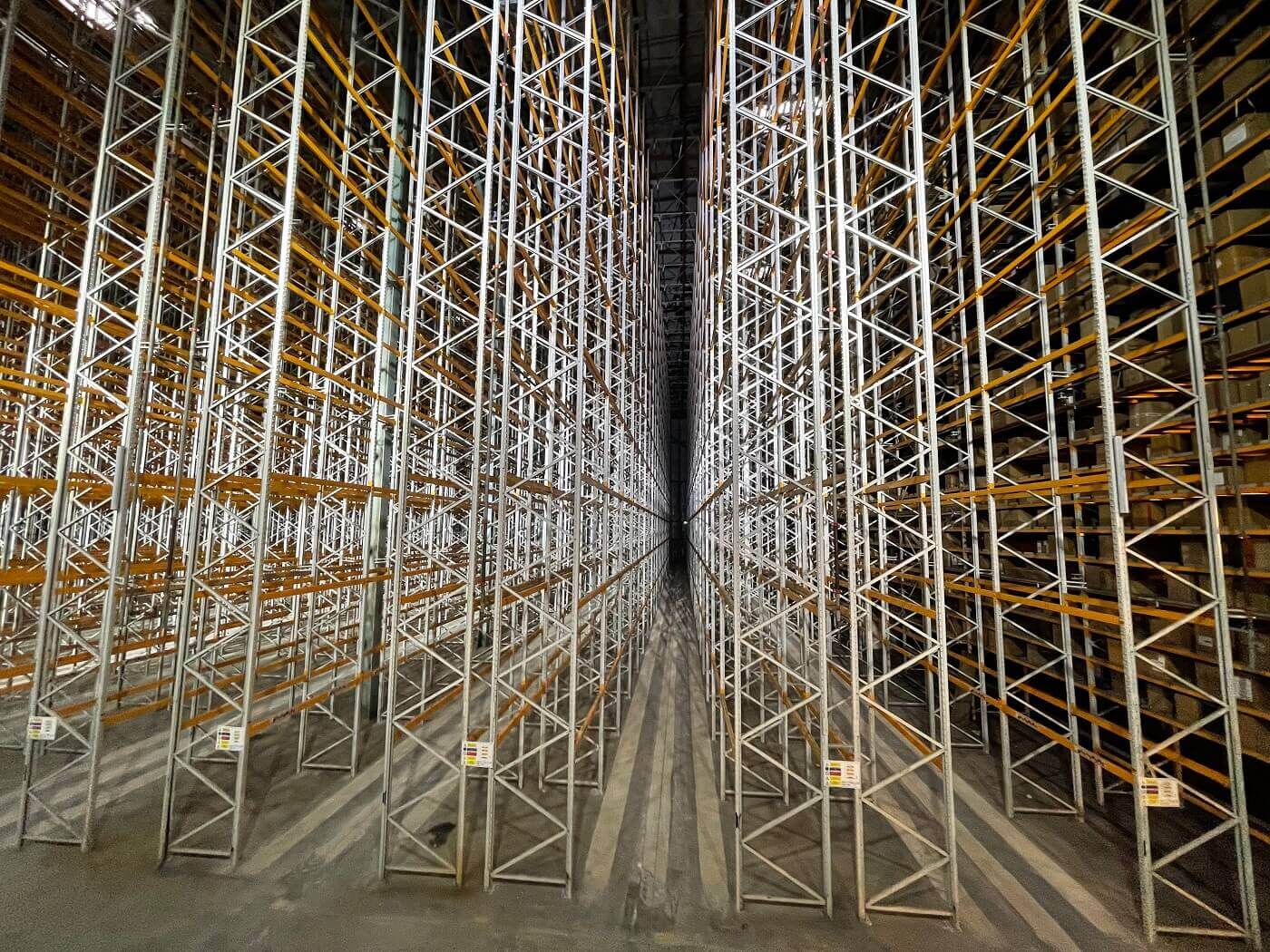

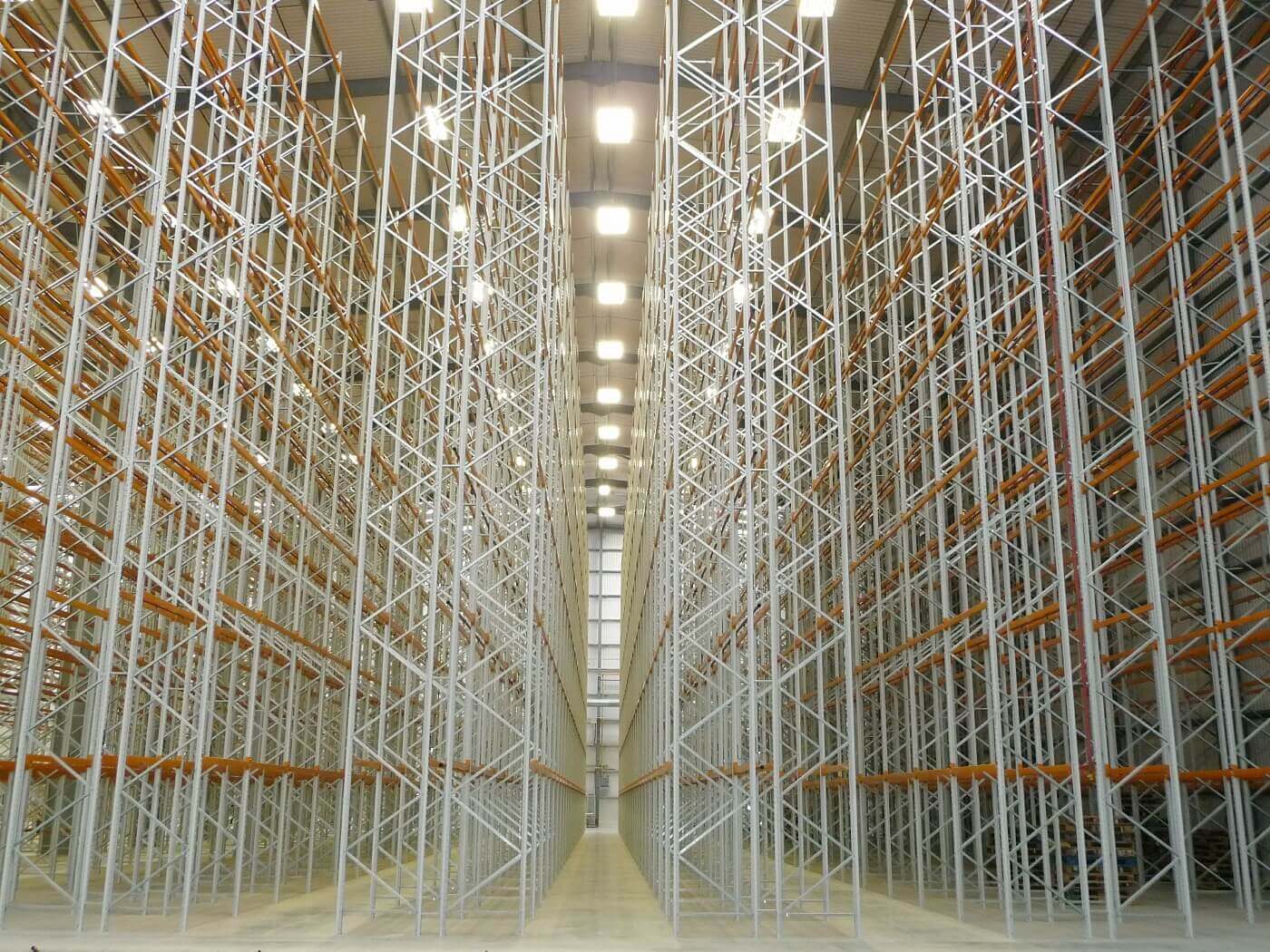

What Is Very Narrow Aisle Pallet Racking (VNA)?
Very narrow aisle pallet racking condenses standard pallet racking into a smaller area which is conspired to generate a high-density storage system from the vertical level.
Key Features
Direct Access
Direct access to all the unit loads
Space Optimization
Save up to 40% of space by reducing the work aisles
Flexible Assembly
Simple assembly, disassembly, and re-adaptation of load levels
Universal Compatibility
Compatible with any type of goods, by weight or volume
Ground Level Storage
Allows pallet storage at floor level on the lowest level of the racking
Stacker Crane Compatible
Flexible enough to install stacker cranes
| Specification | Details |
|---|---|
| Standard Size | L2300*D1000*H4500 (Customizable) |
| Height | 1500-8000mm (Customizable) |
| Width/Depth | 400-1500mm (Customizable) |
| Length | 1500-3200mm (Customizable) |
| Color | Default: Blue upright frame, Orange beam (Customizable) |
| Raw Material | High-quality Q235 cold-rolled steel |
| Upright-Section | 80*60*1.5/1.8/2.0mm, 90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, 120*95*2.0/2.5mm, etc. |
| Beam-Section | 80*45mm, 100*45mm, 120*45mm, 140*45mm, 160*45mm, 180*45mm, etc. |
| Layers | Customizable |
| Pitch Holes | 75mm |
| Loading Capacity | 1000~6000kgs or 2200~13200lbs |
| Surface Treatment | Powder coated |
| Packaging | Air bubble, Wooden Case, etc. |
When was Vison Storage established?
Vison Storage began operations in May 2008, providing innovative storage solutions worldwide.
What is your factory's production capacity?
Our factory has a monthly production capacity of approximately 200,000 tons.
What is your standard delivery time?
Delivery times vary depending on the order details. Generally, we deliver within 25–45 days. For precise timelines, please contact our sales team for tailored advice.
What are your main export products?
Our core product offerings include:
- Selective Racking: Teardrop and traditional models
- Cantilever Racking: Traditional designs
- ASRS Solutions: Radio Shuttle ASRS, Crane-Based ASRS, and Four-Way Shuttle ASRS
- Specialty Racks: Double Deep, Drive-In, VNA
- Mezzanine Structures
- Pallets: Steel, Powder-Coated, Galvanized, and Hot-Dipped Galvanized
- Custom Mechanical Equipment Components
Which countries do you export to?
Vison Storage exports to numerous international markets, including the US, Switzerland, Australia, Denmark, India, the Netherlands, Pakistan, Mauritius, and various Southeast Asian countries like Cambodia, Thailand, Indonesia, Singapore, and Malaysia.
What international trade terms do you offer?
We handle all major international trade terms, including EXW, FOB, and CIF. For detailed information, reach out to us to discuss your specific requirements.
What are your payment terms?
Our standard payment terms are:
- 50% T/T in advance as a deposit
- 50% T/T against a copy of the B/L as the balance
If you require alternative arrangements, our representatives are happy to assist and provide a customized solution based on your needs.
How do you ensure proper packaging of products?
We use packaging tailored to the product type and customer agreement. Options include corrugated paper, carton boxes, crossties, pallets, angle steel, plastic film, steel ties, and airbags. With extensive export experience, we guarantee secure and efficient packaging.
Can I visit your factory?
Absolutely! We welcome visitors to our factory. To arrange a tour, please email us, and our representative will assist you in planning your visit.
